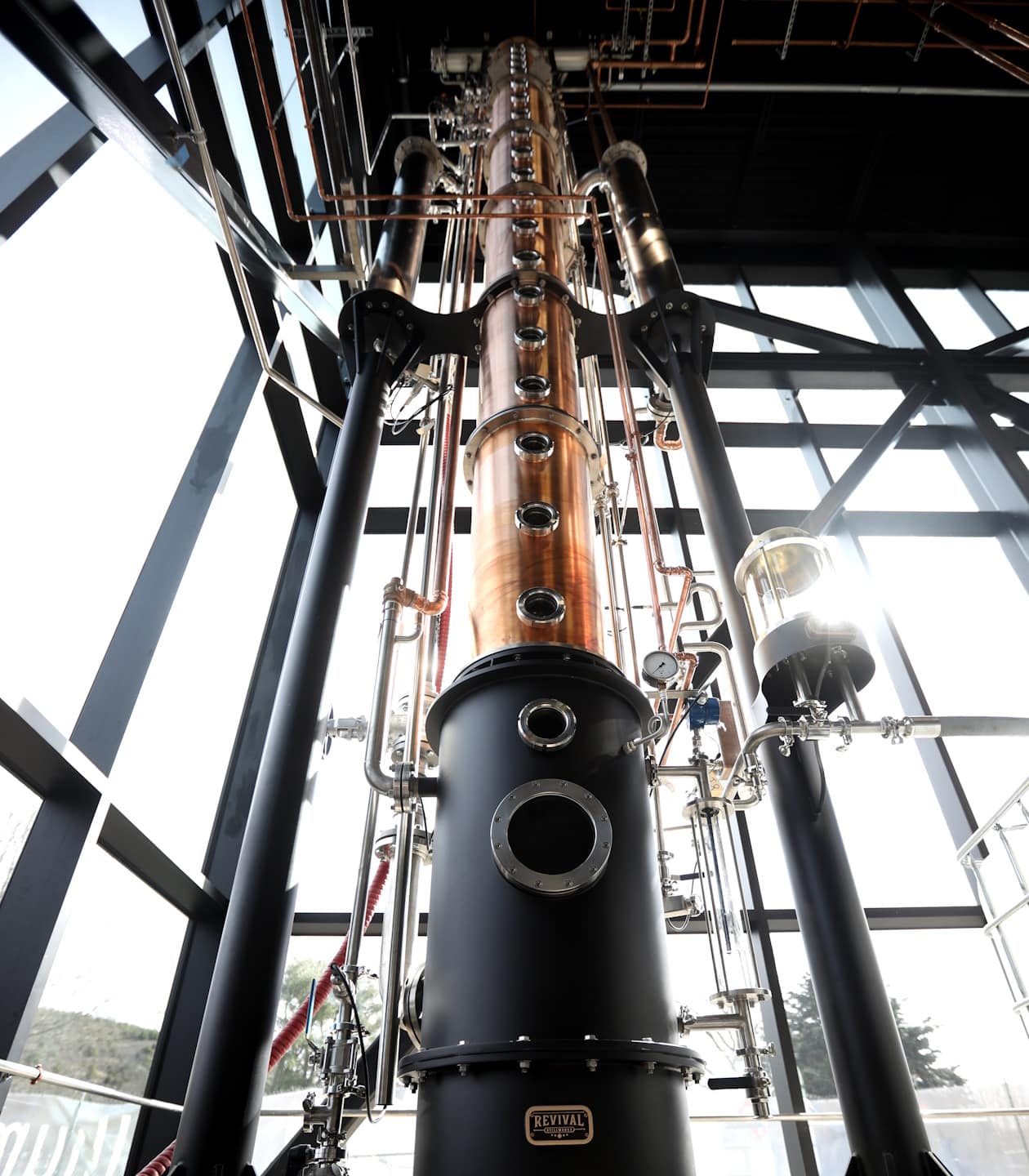

Continuous columns are designed to be fed by a continuous feed of fermented mash or beer. They are used by many of the large spirits manufacturers around the world. The most common spirits made using a continuous column are bourbon, whiskey, rum, vodka. Although these columns are great for larger distilleries they are not suited to the volumes or varieties of spirits that many craft distillers are producing.
*The color configuration of our stills constitutes proprietary trade dress, and is a trademark of Revival Stillworks Ltd.

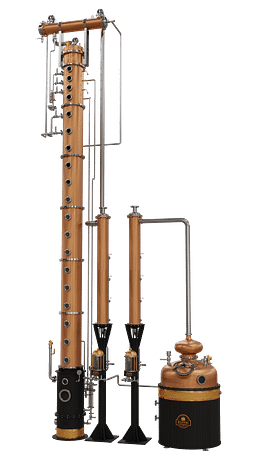

BEER STILL + DOUBLER
-LOW WINES FROM BEER STRIPPING COLUMN IS RE-DISTILLED IN DOUBLER

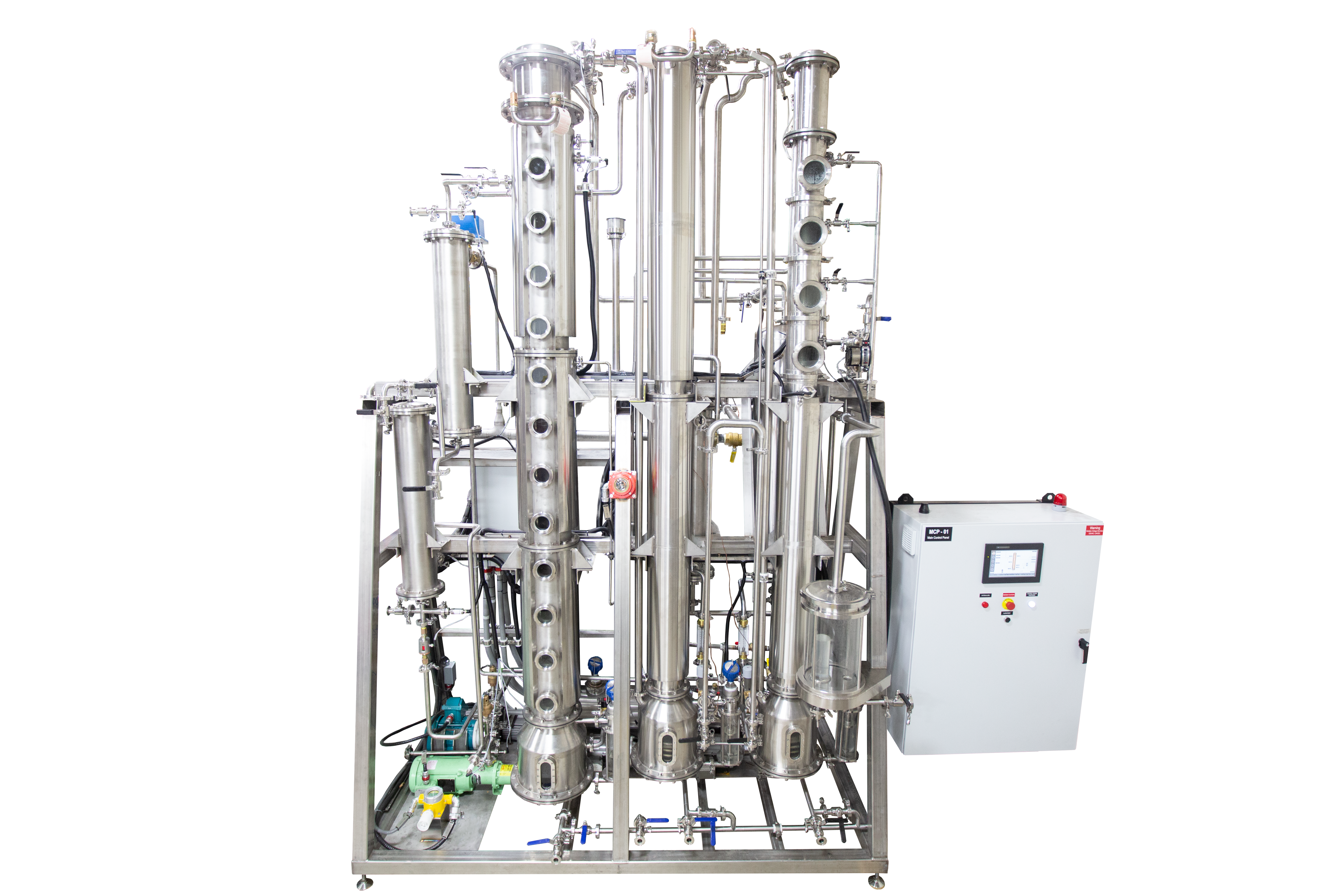

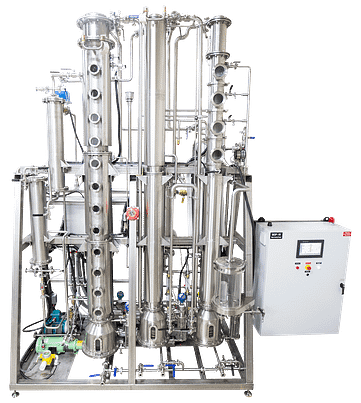

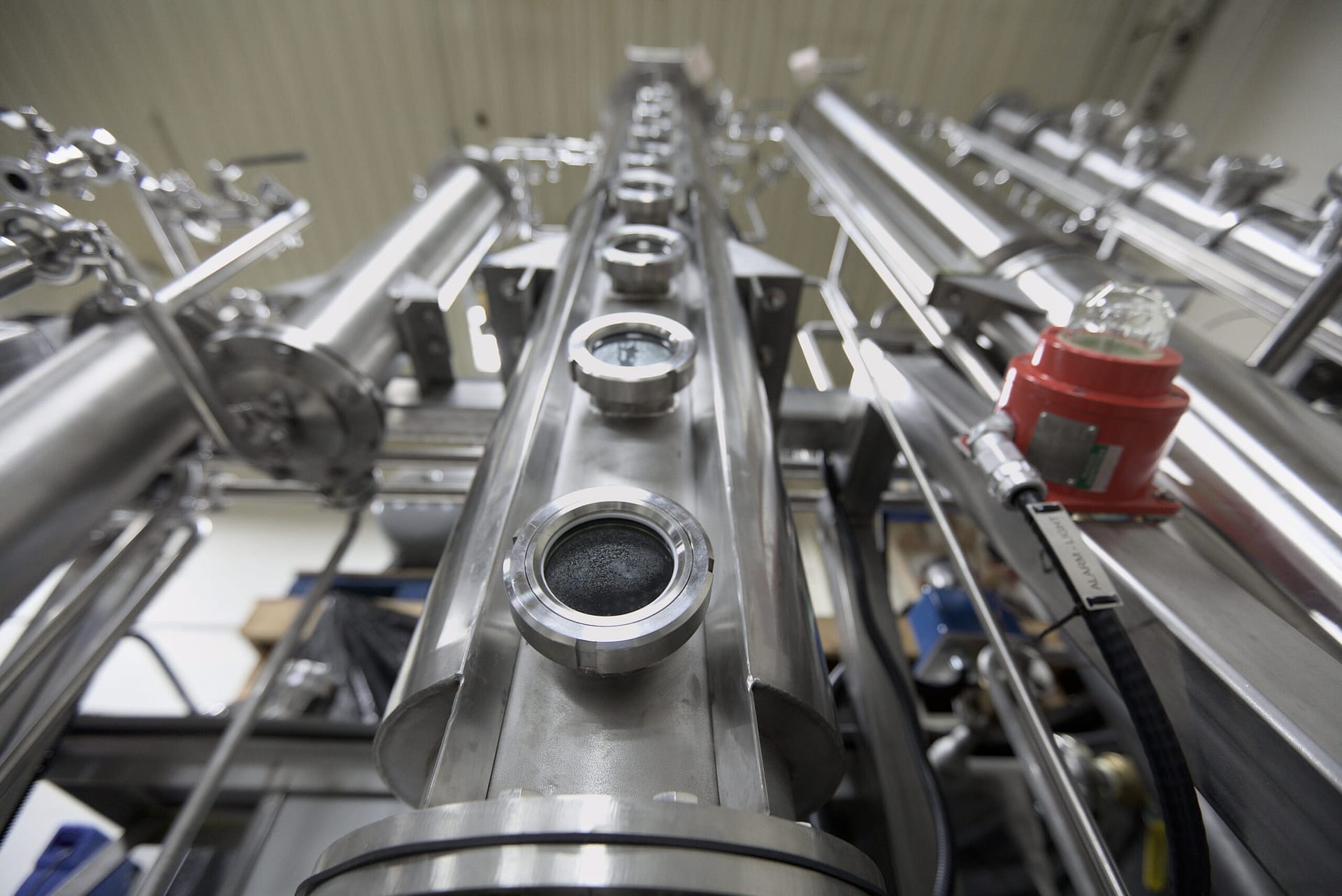

NEUTRAL SPIRIT COLUMN STILL
-2 TO 3 COLUMNS
-STRIP AND RECTIFY THE SPIRIT TO PRODUCE BULK NEUTRAL SPIRIT (NGS)
-NEUTRAL SPIRIT (GNS)
Copper or Stainless
Columns can be constructed from copper or stainless steel. Typically a bourbon beer column still is built out of copper. A neutral spirit column still may have some stainless steel column sections and some copper column sections depending on the customer request.
A doubler is commonly used when making bourbon or whiskey. It is essentially a pot still that continuously re-distills the low wines feed coming from the beer stripping column. Doublers are generally fabricated from copper.
Beer pre-heaters are used to pre-heat the continuous feed of beer into the beer stripping column. It is necessary to heat the beer to the optimal temperature before entering the column. The pre-heater is heated by the vapor exiting the column. This in turn provides reflux to the column. Energy savings are also realized by heating the beer using this method.
Low Wines and High Wines Tanks
The low and high wines collections tanks are an integrated part of the continuous column. For a bourbon column still the low wines tank will feed the doubler.
Low Wines Condenser
The low wines condenser is used to condense the vapor exiting from the column and beer pre-heater. These condensers are usually fabricated out of copper and the exiting condensate is fed to the low wines tank and then to the doubler.
High Wines Condenser
The high wines condenser condenses the vapor from the doubler. At this point the spirit has been refined to its final state and is ready for dilution and barreling. High wines condensers can be made from copper or stainless steel.
Clean Steam Boilers
Most modern column stills are powered by clean steam directly injected into the bottom of the continuous column. Other methods of heating can cause fouling of the heating surfaces which may wreak havoc on a column still. We recommend using a clean steam boiler for all Revival column stills.
Continuous columns have been used since the early 1800's and have become quite common in the spirits industry. The advantages of high production rate, high efficiency and continuous operation allow larger distilleries an economic advantage over smaller batch systems. Column stills range in feed rate capacity from 10 L/min to 150 L/min.
